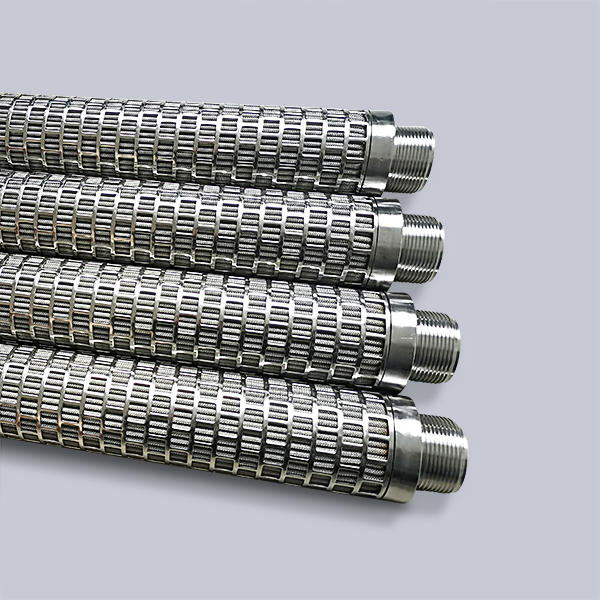

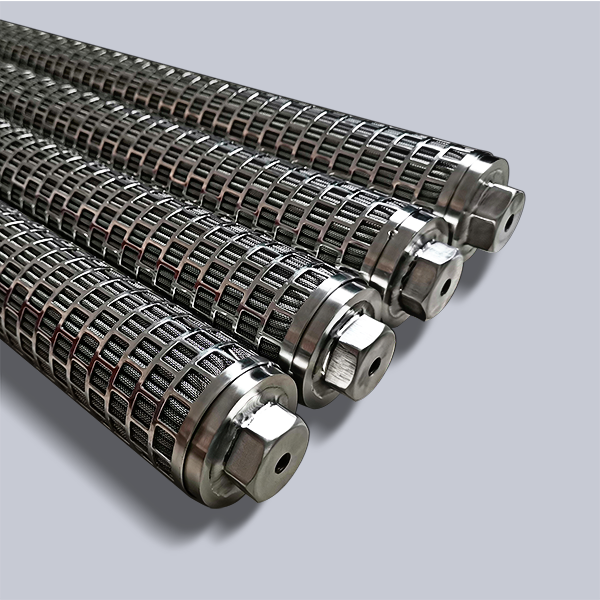

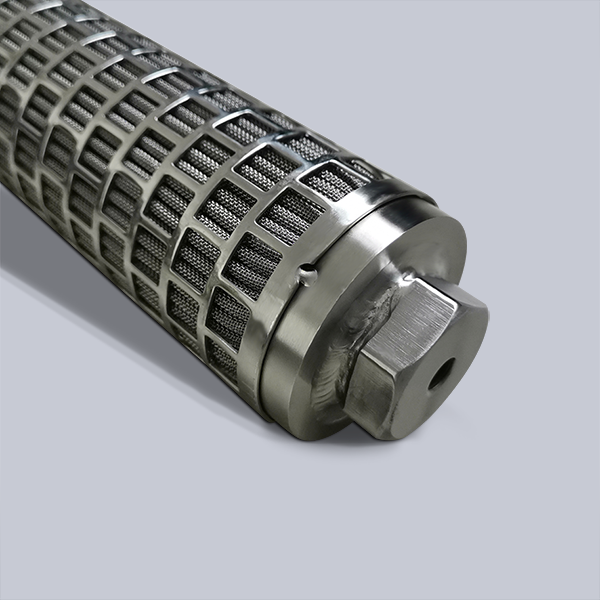

Sintered Felt Filter Element

▋产品展示 / PRODUCT DISPLAY

型号 Model	长度 L（ｍｍ）	直径 D（mm）	接口 M	过滤面积 Filter Area	精度 R	滤材 Filter Media
PF-86/200-R	200	86	M65x2P	0.20M²	3、5、7、 10、15、 20、25、 30、45、 60、75、	不锈钢纤维网 Stainless steel Sintered fiberwed 不锈钢编织网 Stainless steelweaven wire cloth
PF-86/350-R	350			0.35M²
PF-86/500-R	500			0.50M²
PF-100/800-R	800	100	M80x2P	1.00M²

型号 Model	长度 L（ｍｍ）	直径 D（mm）	接口 M	过滤面积 Filter Area	精度 R	滤材 Filter Media

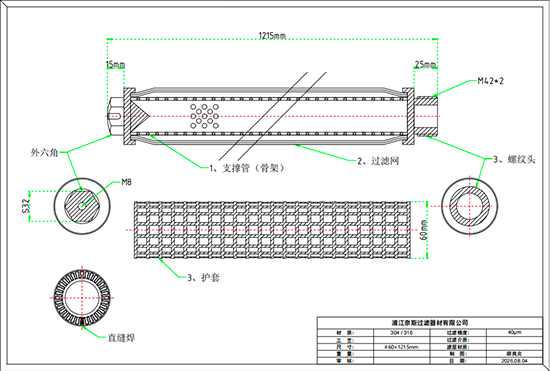

PF-60/1215-R	1215	60	226 223 220 215422522	0.96M²	3、5、7、 10、15、 20、25、 30、45、 60、75、	不锈钢纤维网 Stainless steel Sintered fiberwed 不锈钢编织网 Stainless steelweaven wire cloth
PF-60/1239-R	1239	60		1.0M²
PF-60/1571-R	1571	60		1.4M²
PF-70/750-R	750	70		1.6M²

▋产品概述 / PRODUCT OVERVIEW

Product Overview

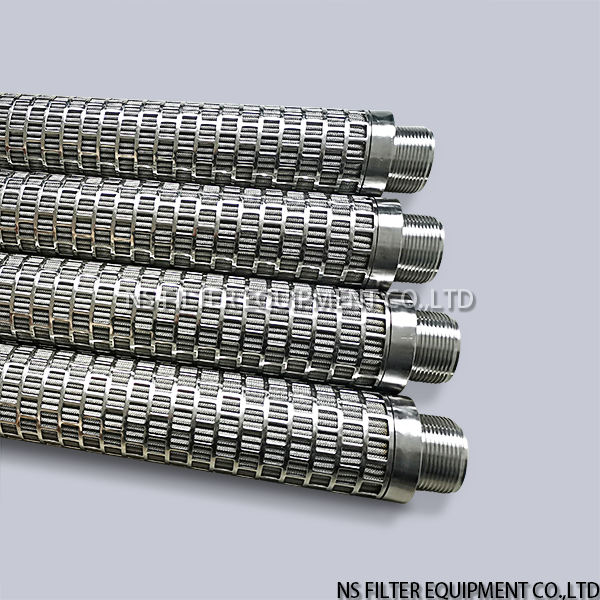

The Virgin Polyester Melt Filter Cartridge (also known as polyester melt filter element or chemical fiber spinning filter cartridge) is a high-performance filtration element specifically designed for high-temperature, high-pressure, and high-viscosity polymer melt filtration. The primary filter media is manufactured from imported stainless steel sintered felt or stainless steel woven mesh, formed through pleating and welding processes. This design effectively overcomes the limitations of traditional wire mesh, including poor rigidity, easy deformation, and unstable filtration accuracy.

The sintered felt features a gradient pore structure that delivers excellent air permeability, high dirt-holding capacity, extended service life, and reliable filtration accuracy. Both end caps are constructed from stainless steel (304/316L) to ensure superior corrosion resistance. The cartridge is widely used for continuous filtration of polymer melts including polyester, polypropylene, polyethylene, polyurethane, and nylon.

Features & Benefits

Feature	Description
High Filtration Precision	Filtration rating from 0.1μm to 200μm+, customizable upon request
High Temperature & Pressure Resistance	Operating temperature up to 300–330℃, working pressure ≤31.7MPa
High Porosity	High porosity design ensures strong permeability and low differential pressure, ideal for high-viscosity melt filtration
Large Filtration Area	Corrugated/pleated surface design increases filtration area and dirt-holding capacity
High Dirt-Holding Capacity	Sintered felt features a three-dimensional network porous structure with high contaminant capacity, extending replacement cycles
Cleanable & Reusable	Can be repeatedly regenerated through chemical cleaning, high-temperature calcination, and ultrasonic cleaning
Flexible Connection Options	Supports threaded, flanged, quick-connect, tie-rod, and custom interfaces

Technical Specifications

Parameter	Specification
Filtration Rating	0.1–200μm (customizable)
Operating Temperature	≤300℃ – 330℃
Operating Pressure	≤31.7MPa
Allowable Differential Pressure	≤10MPa
Medium Viscosity	≤260Pa·S
Filter Media Material	Stainless steel fiber sintered felt / Stainless steel woven mesh
End Cap Material	304 / 316L Stainless Steel
Connection Type	Threaded, Flanged, Quick-connect, Tie-rod, Custom

Applications

Virgin Polyester Melt Filter Cartridges are widely used in the following industries:

Chemical Fiber & Textile Industry: Melt filtration in polyester chips, staple fiber, and filament fiber production
Film Manufacturing: Melt filtration for BOPET, BOPP, lithium battery separators, optical films, capacitor films, and PPF (paint protection film)
Chemical Industry: Filtration of polymer compounds, polyester melts, inks, and prepolymers
Petroleum & Petrochemical: Filtration of heavy oil, high-viscosity hydraulic oils, petroleum, and asphalt
High-Temperature Gas / Steam Filtration
High-Temperature Liquid / Viscous Liquid Filtration

Customization Available: Filtration rating, dimensions, connection types, and other technical parameters can be engineered to meet specific customer requirements.
