Pleated Metal Mesh Melt Filter Element – Product Page
Overview
The Pleated Metal Mesh Melt Filter Element is a high‑performance precision filter designed for the continuous filtration of high‑viscosity polymer melts, chemicals, hydraulic fluids, water, and hot gases. Manufactured entirely from stainless steel media – including sintered fibre felt and woven wire mesh – this element combines exceptional mechanical strength with outstanding filtration efficiency.
The pleated (corrugated) configuration maximises the active filtration area within a compact envelope, delivering high flow rates, extended service life, and reliable operation under extreme temperatures and pressures. It is the preferred choice for demanding industrial processes where product purity and process continuity are critical.
Key Features
-
Premium Filter Media – Constructed from stainless steel fibre sintered felt and stainless steel woven wire mesh. Sintered felt is a porous depth‑type material produced by high‑temperature sintering of fine stainless steel fibres, offering a graded pore structure for precise particle capture.
-

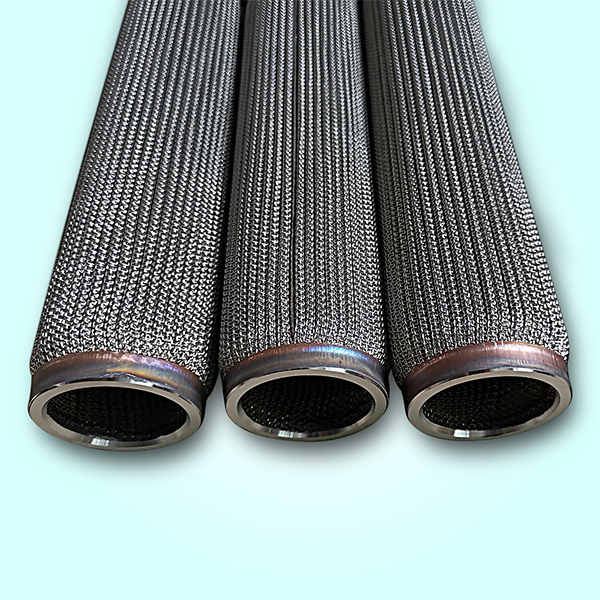

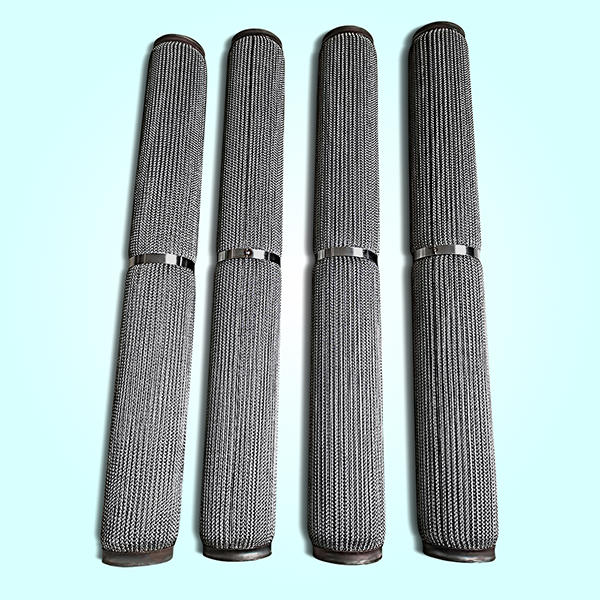

Pleated Design – The corrugated fold pattern significantly increases the effective filtration area (typically 5–10 times that of a plain cylindrical element), resulting in lower pressure drop and higher dirt‑holding capacity.
-
High Porosity & Permeability – The open‑pore structure ensures minimal flow resistance while maintaining high retention efficiency.
-
Excellent Dirt‑Holding Capacity – The depth‑filtration mechanism traps contaminants throughout the media thickness, extending element life and reducing replacement frequency.
-
Reusable & Cleanable – The all‑metal construction allows repeated cleaning by back‑flushing, back‑washing, ultrasonic, or chemical methods, delivering long operational life and lower total cost of ownership.
-
Outstanding Thermal & Mechanical Strength – Withstands temperatures from –200 °C up to 800 °C and pressures up to 30 MPa, with resistance to vibration, thermal cycling, and fluid erosion.
-
Corrosion Resistance – Standard material (SUS316L or equivalent) provides excellent resistance to acids, alkalis, and many aggressive chemical media.

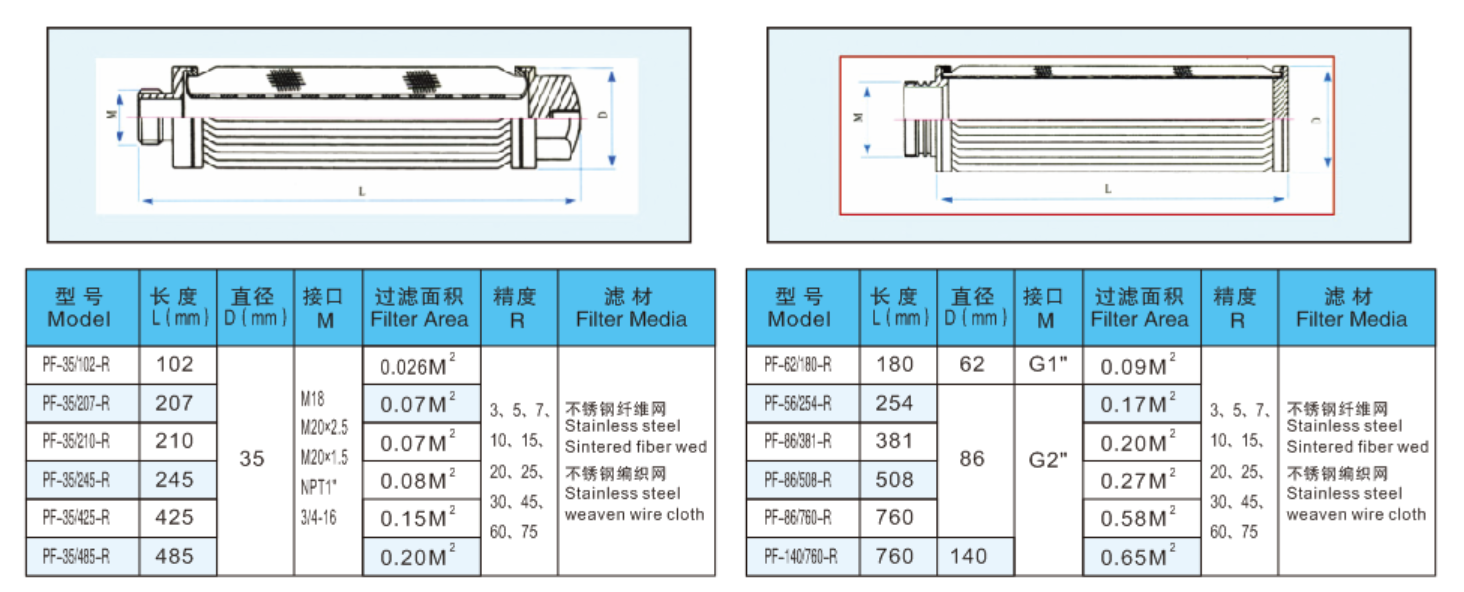

Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | Stainless steel sintered fibre felt / woven wire mesh (grades SUS304, SUS316L, or special alloys on request) |
| Filtration Rating | 1 – 300 μm (customisable) |
| Operating Temperature | –200 °C to +800 °C (depending on material selection) |
| Maximum Operating Pressure | Up to 30 MPa |
| Maximum Differential Pressure | 2 MPa (typical) |
| Element Configuration | Pleated (corrugated) cylindrical cartridge |
| Connection Types | 222, 220, 226, threaded, flanged, pull‑rod, or custom interfaces |
| Material Options | Stainless steel (standard), Hastelloy, Inconel, or other special alloys upon request |
Applications
This filter element is widely used in processes requiring high‑temperature, high‑pressure, and high‑viscosity fluid purification, including:
-
Polymer & Synthetic Fibre Production – Filtration of polyester, nylon, spandex, and other melts before spinning or extrusion.
-
Film & Sheet Extrusion – Removal of gels and contaminants from polymer melts to ensure uniform product quality.
-
Pharmaceutical Industry – Sterile and fine filtration of active ingredients, solvents, and intermediates.
-
Hydraulic Systems – High‑pressure hydraulic oil filtration in industrial machinery.
-
Water Treatment – Pre‑filtration and polishing in municipal and industrial water purification.
-
High‑Temperature Gas Filtration – Removal of particulates from hot process gases, flue gases, and compressed air.
-
Petrochemical & Chemical Processing – Filtration of aggressive chemicals, monomers, and catalysts.
Why Choose This Pleated Metal Mesh Filter Element?
| Advantage | Benefit |
|---|---|
| Increased Filtration Area | Pleated geometry allows higher throughput with lower pressure drop. |
| Depth‑Type Filtration | Catches particles both on the surface and within the media, ensuring high efficiency even with fine ratings. |
| Longer Service Life | High dirt‑holding capacity reduces change‑out frequency and downtime. |
| Cleanable & Sustainable | Reusable design lowers waste and replacement costs. |
| Robust Construction | Withstands harsh environments – no media shedding or deformation. |
| Full Customisation | Any size, rating, connection, or material can be tailored to your process. |
Customisation Options
We understand that every process has unique requirements. The following parameters can be fully customised:
-
Filtration rating (1–300 μm)
-
Element diameter and length
-
Connection type (threaded, flanged, bayonet, etc.)
-
Filter media type (sintered felt, woven mesh, or multilayer composites)
-
Material grade (standard stainless steel, Hastelloy, Inconel, titanium, etc.)
-
End cap design and seal materials
Please provide your process data (flow rate, temperature, pressure, viscosity, contaminant type) for a personalised recommendation.
Ordering Information
-
Minimum Order Quantity – 1 piece (samples and small batches welcome).
-
Lead Time – Typically 10–15 working days for standard sizes; custom orders may require additional time, subject to quantity and complexity.
-
Pricing – Quoted upon request based on specification, quantity, and material. Volume discounts are available.
-
Packaging – Each element is individually packed to prevent damage during transit.
Contact Us
For technical enquiries, detailed quotations, or to discuss your specific filtration challenges, please reach out via the contact form or email. Our engineering team is ready to assist you in selecting the optimum filter element for your application.
This product page is provided for informational purposes. All specifications are subject to change without notice. Please confirm final details with our sales team before ordering.
